RETHINK YOUR EXPECTATIONS
ELANTRA


RADIATOR GRILLE

REAR COMBINATION LAMPS

17" ALLOY WHEELS

DESIGN THAT PUSHES THE BOUNDARIES,
FOR A CAR THAT GOES FURTHER

With its sleek styling and sporty, dynamic lines, the feature-packed Elantra dares to go beyond what you might expect from a car in its class.

CONFIDENTLY REFINED

From its voluminous grille to its wide, assured stance, the Elantra has urban confidence and refinement written into every line. The eye-catching looks confirm its unmistakable presence.

SOPHISTICATION AND TECHNOLOGY IN HARMONY

A sophisticated car demands sophisticated technology. Fulfilling not just your driving needs but your enjoyment and convenience, design and engineering combine with touches of luxury to provide a stand-out experience.

FUNCTIONALLY INTUITIVE

This is a driver’s car. Ergonomic and intuitive, the center fascia is tilted 6.9° towards the driver for optimum control, while switches are grouped according to their function.

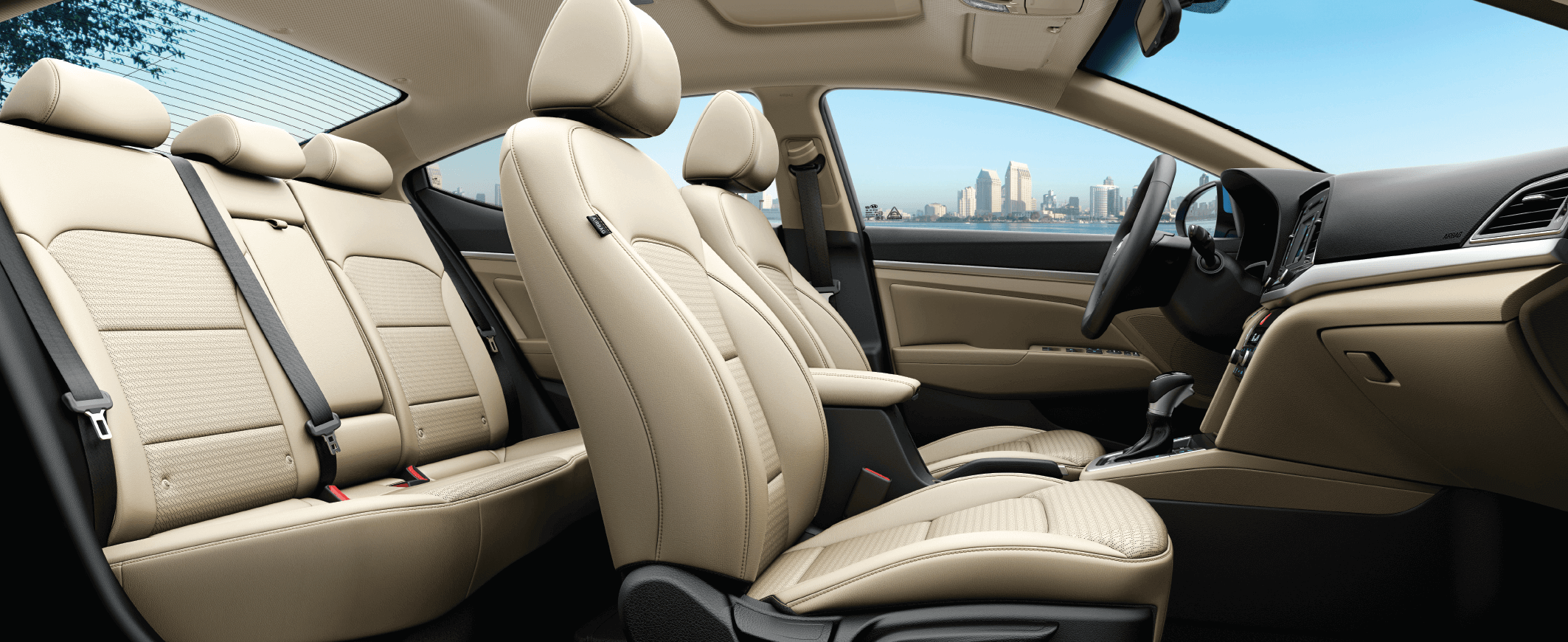

Roomy, comfortable and perfectly designed, the Elantra’s interior has been perfectly thought out.

A. SUPERVISION CLUSTER WITH 4.2″ COLOR TFT LCD

Offering outstanding visibility, the supervision cluster with 4.2″ color TFT LCD clearly and logically provides the vehicle and driving information you need.

B. AUDIO REMOTE CONTROL

Controls for the audio system are mounted on the steering wheel. Tumblers let you adjust volume and switch radio stations, and there are buttons for making hands-free phone calls.

C. INFINITY PREMIUM SOUND SYSTEM

The Infinity premium sound system combines cutting-edge materials with a unique sonic design to provide in-car listening like no other.

D. 5.0″ COLOR TFT LCD TOUCH-SCREEN

The audio system with an optional 5.0″ color TFT LCD can be operated conveniently thanks to its touch-screen. The optional Bluetooth function not only lets drivers listen to music, but also allows them to make telephone calls safely while driving.

E. SEAT FOLDING SYSTEM (6:4 TYPE)

Got lots to carry? The rear seats fold down in a 6:4 ratio, offering plenty of versatility when it comes to fitting in your gear.

F. REAR SEAT WARMERS

Passengers in the back can keep warm and snug thanks to rear seat warmers. Each person can adjust their individual seat temperature.

G. FRONT AIR VENTILATION

The driver and front passenger seats feature a ventilation system that offers 3 levels of air circulation, for a cooler driving experience during the summer months.

H. DUAL AUTO AIR CONDITIONING

This lets both the driver and the front passenger control their own air temperature settings.

I. MANUAL AIR CONDITIONING

Manual air conditioning lets you adjust the climate with just a touch of a button.

' . $image['alt'] . '

From its voluminous grille to its wide, assured stance, the Elantra has urban confidence and refinement written into every line. The eye-catching looks confirm its unmistakable presence.

' . $image['alt'] . '

ELECTRONIC STABILITY CONTROL (ESC) Electronic stability control detects and reduces loss of traction during sudden braking and turning movements.

' . $image['alt'] . '

Auto cruise control system can maintain the vehicle speed that you have set so that you may drive without pressing accelerator pedal

' . $image['alt'] . '

This is a driver’s car. Ergonomic and intuitive, the center fascia is tilted 6.9° towards the driver for optimum control, while switches are grouped according to their function.

' . $image['alt'] . '

Well-balanced, stable handling is delivered through motor-driven power steering, optimized suspension and enhanced acceleration response.

GOING PLACES

Hyundai Motor has created a car for the future. One that delivers on the looks but underpinned with practicality and an effortless ability that fits into your life. Well-balanced, stable handling is delivered through motor-driven power steering, optimized suspension, and enhanced acceleration response.

POWER, TRANSMISSION, AND KEEPING YOU PROTECTED

Whether the engine is gasoline or diesel, the Elantra guarantees good performance. Transmissions are 7-speed double clutch or 6-speed manual, automatic, each offering matchless shifting with enhanced fuel economy. As part of a comprehensive airbag system, the Elantra features a driver’s knee airbag for maximum protection in case of a frontal collision.

A. 6-SPEED AUTOMATIC TRANSMISSION

The 6-speed automatic transmission features a new shift pattern that delivers almost imperceptible gearshifts along with smooth, progressive acceleration.

B. 6-SPEED MANUAL TRANSMISSION

Light to the touch and providing improved durability with excellent fuel economy, the 6-speed manual transmission features a redesigned reverse gear release button for easier operation.

C. 2.0 MPi GASOLINE ENGINE

The 2.0 MPi gasoline engine produces a maximum output of 152 ps at 6,200 rpm and a maximum torque of 19.6 kg·m at 4,000 rpm. Torque (kgf.m) Power (PS) Engine Speed (rpm) Power (PS) Torque (kgf.m) 32 27 17 22 12 1,000 2,000 3,000 4,000 110 140 80 50 20

D. 1.6 MPi GASOLINE ENGINE

The 1.6 MPi gasoline engine produces a maximum output of 127.5 ps at 6,300 rpm and a maximum torque of 15.77 kg·m at 4,850 rpm.

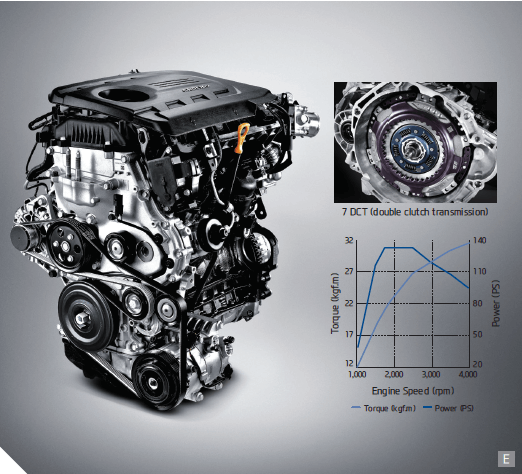

E. 1.6 CRDi DIESEL ENGINE & 7-SPEED DOUBLE CLUTCH TRANSMISSION

With its turbocharged engine combined with the 7-speed DCT, the Elantra provides high-performance and reduced fuel consumption. This combination produces a maximum output of 136 ps at 4,000 rpm and a maximum torque of 30.6 kg·m at 1,750~2,500 rpm. (M/T produces a maximum torque of 26.5 kg·m at 1,500~3,500 rpm)

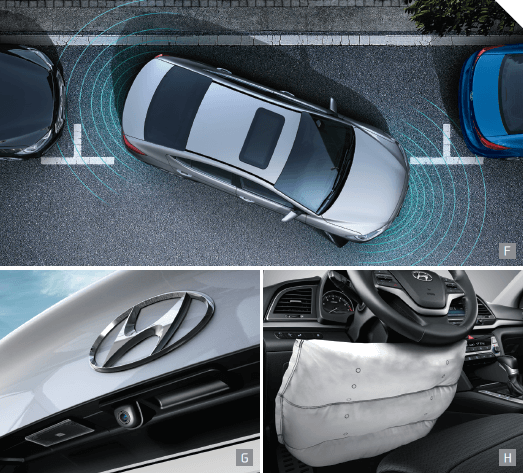

F. FRONT & REAR PARKING ASSIST SYSTEM (PAS) Sounds an audible alert if you get too close to any obstacles and helps you park safely. G. REAR VIEW CAMERA The rear view camera is another invaluable parking tool. The rear view is displayed on

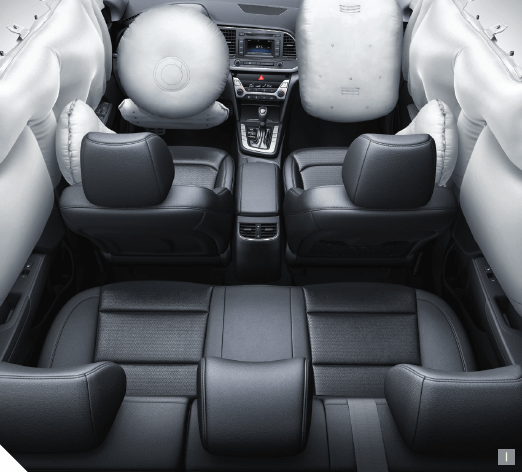

H. DRIVER SEAT’S KNEE AIRBAG The Elantra has a knee airbag in the driver’s seat, protecting this vital area in case of collision. I. 7-AIRBAG SYSTEM The Elantra is equipped with a 7-airbag system. There is a driver airbag and knee airbag, passenger airbag, two front side airbags, plus two curtain airbags along the whole length of the cabin.
D. 1.6 MPi GASOLINE ENGINE The 1.6 MPi gasoline engine produces a maximum output of 127.5 ps at 6,300 rpm and a maximum torque of 15.77 kg·m at 4,850 rpm.

BODY STRUCTURE BUILT STRONGER

ENHANCED CHASSIS RIGIDITY AND STRENGTH

More than 53% of the Elantra’s sub-frame is comprised of Advanced high strength steel (AHSS). It means enhanced chassis rigidity as well as improved handling, durability and performance.

DETAILS, OPTIONS, CHOICES

It’s great to have choices. It means you tailor things to your own personal preferences. The Elantra offers a wide range of optional features for both the exterior and interior. Outside mirror repeaters for a touch of class, a heated steering wheel for extra comfort on winter mornings – whatever you choose, the end result is your car, your way.

* Unit: mm, wheelbase based on 225/40R 18” tires



Category 1.6 MPi gasoline engine 2.0 MPi gasoline engine 1.6 CRDi diesel engine
Overall length (mm) 4,570 4,570 4,570
Overall width (mm) 1,800  1,800 1,800
Overall height (mm) 1,450 1,450 1,450
Wheelbase (mm) 2,700 2,700 2,700
Front wheel track (mm) 15″ : 1,563 / 16″ : 1,555 / 17″ : 1,549 15″ : 1,563 / 16″ : 1,555 / 17″ : 1,549 15″ : 1,563 / 16″ : 1,555 / 17″ : 1,549
Rear wheel track (mm) 15″ : 1,572 / 16″ : 1,564 / 17″ : 1,558 15″ : 1,572 / 16″ : 1,564 / 17″ : 1,558 15″ : 1,572 / 16″ : 1,564 / 17″ : 1,558
Front Leg room (mm) 1,073 1,073 1,073
Rear Leg room (mm) 906 906 906
Front Head room (mm) 985 985 985
Rear Head room (mm) 947 947 947
Front Shoulder room (mm) 1,427 1,427 1,427
Rea Shoulder room (mm) 1,405 1,405 1,405
Engine type DOHC DOHC DOHC
Displacement (cc) 1,591 1,999 1,582
Max. Power (ps / rpm) 127.5 / 6,300 152 / 6,200 (Euro-3,4,5,6*) 136 / 4,000
Max. Torque (kg·m / rpm) 15.77 / 4,850 19.6 / 4,000 (Euro-3,4,5,6*) 26.5 / 1,500~3,500 (M/T), 30.6 / 1,750~2,500 (DCT)
Brake Dual-diagonal, split-circuit, power-assisted braking system with pressure proportioning valve In case of ABS/ESC : Electronic brake force distribution(EBD)
Suspension(Front / Rear) McPherson strut type / Coupled torsion beam axle
Tire 195 / 65 R15, 205 / 55 R16, 225 / 45 R17
Fuel tank (liter) 5
*European emission standard.
  • The above values are results from internal testing and are subjected to change after validation.
  • Some of the equipment illustrated or described in this catalog may not be supplied as standard equipment and may be available at extra cost.
  • Hyundai Motor Company reserves the right to change specifications and equipment without prior notice.
  • The color plates shown may vary slightly from the actual colors due to the limitations of the printing process.
  • Please consult your dealer for full information and availability on colors and trims.
